RF FILTER

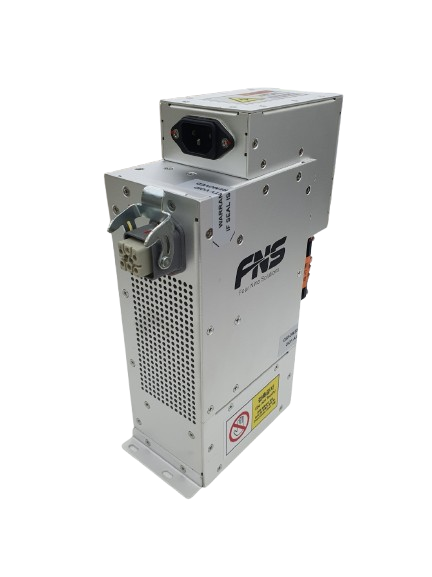

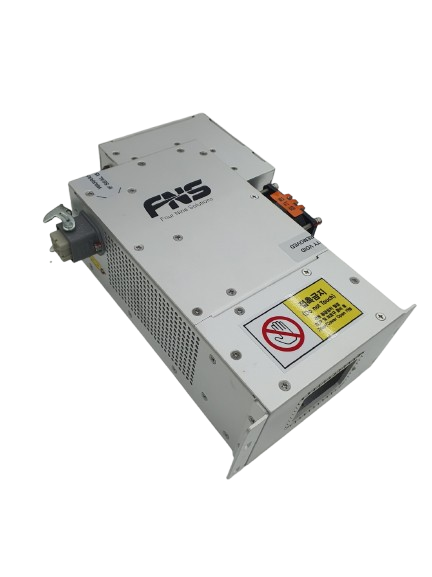

Hybrid Filter
Detail
| SPECIFICATIONS [Main Filter Module] | |
|---|---|
| Parameters | |
| Frequency Range | 13.56MHz & 400KHz |
| RF Input Impedance [IZI mag] | Min. 2KΩ |
| Rejection at LF [S21] | Max. -25dB |
| RF Input Impedance [IZI mag] | Min. 2KΩ |
| Rejection at LF [S21] | Max. -25dB |
| Power Rating | |
| Allowable Current | Max. 5A |
| Operating Voltage | Max. 220Vac |
| Connector | |
| Heat Jacket AC Input & Output [Inner] | 3P Female 0920 003 0301 & 0912 005 3104 |
| Heat Jacket AC Input & Output [Outer] | B4N (Multilam 4Pi Socket ) |
| Fan | 220Vac (ID-0642-S)] |
| Physical | |
| Size [Next Page] | Customize |
| Environmental & Cooling | |
| Operating Temperature | +5ºC ~ +40ºC |
| Cooling [Fan] | 24VDC @Max. 1A |
