[Quantum] AC Filter
FeaturesOutputs Signals of the Same Phase to Multiple Channels
-The Phase Difference Between the Channels is Good
-Frequency and Output Power Can be Selected
-Customized Design
ApplicationsMultiple Semiconductor Chambers with Phase Difference Problems
-Equipment that Requires a Small Power Multi-Channel Signal Source
-Research or Industrial Equipment
Detail
| SPECIFICATIONS [Main Filter Module] | |
|---|---|
| Parameters | |
| Frequency Range | Customize [ 400KHz to 60MHz] |
| Port Impedance | 50Ω |
| Number of Channels | Selectable |
| Output Waveform | Sine Wave |
| Phase Deviation | ±0.25˚ |
| Maximum Output | Customize [ Normal 5dBm ] |
| Harmonic | Max. -45 dBc |

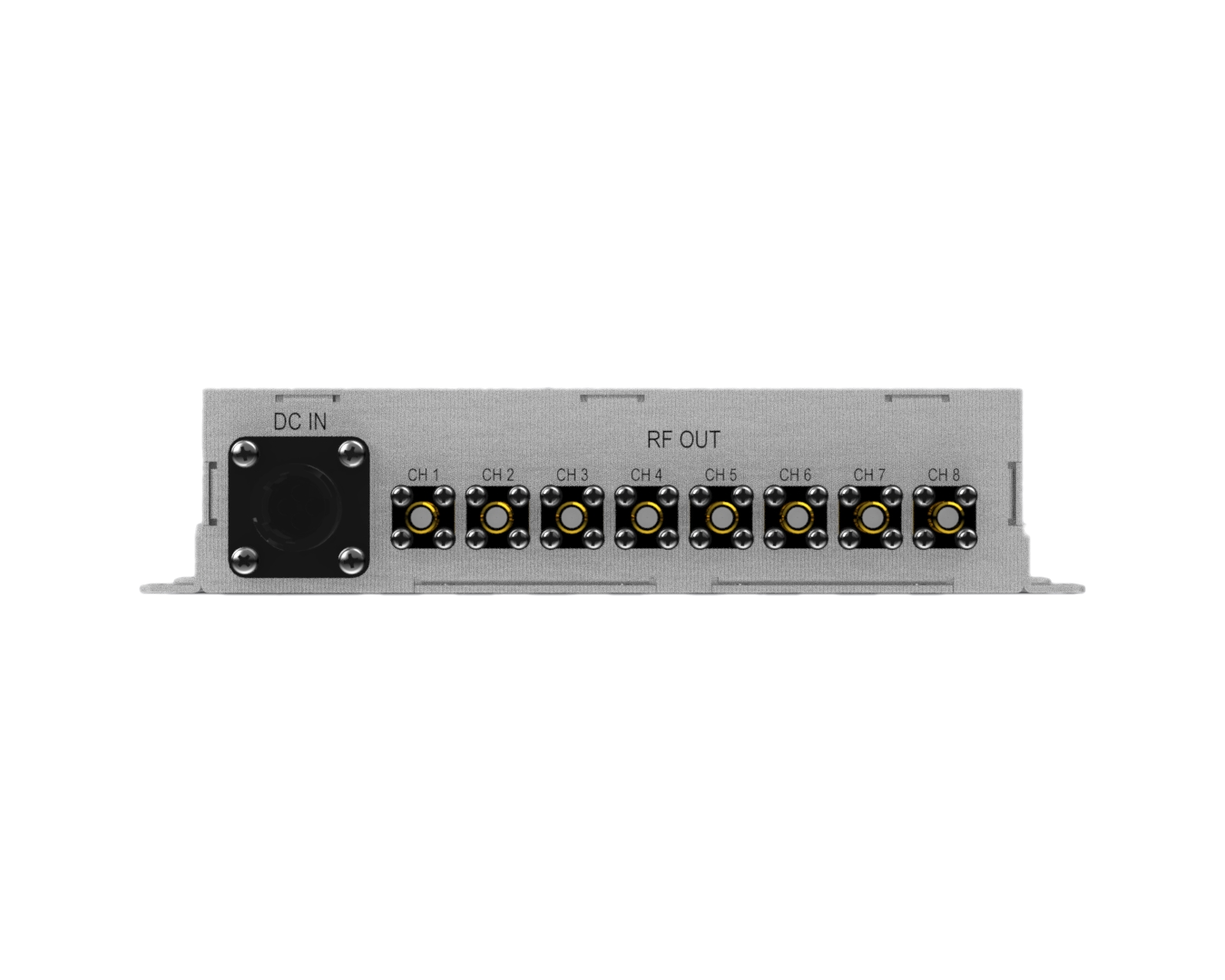

| Connector | |
| Output Connector | SMA [ Female ] |
| Power Connector [ Next Page ] | 206061-1-1 [ Male ] |
| Physical | |
| Size [Next Page] | Customize |
| Environmental & Cooling | |
| Operating Temperature | +5ºC ~ +40ºC |
| Cooling | Convection Cooling |
